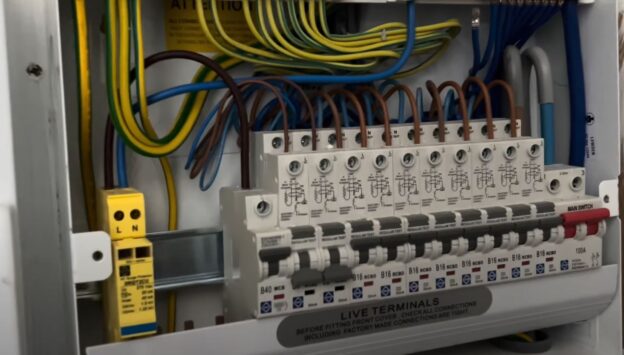

BS7671 – Key Parts and Sections

The BS 7671 standard, commonly referred to as the IET Wiring Regulations, is the main set of guidelines in the UK for electrical installations in buildings. This standard specifies the requirements for the design, installation, testing, and inspection of electrical systems to ensure they are safe, efficient, and compatible with other systems.

The standard is divided into several key Parts and Sections, each covering different aspects of electrical installation safety and performance. Here’s an overview of each part and section to help you understand its purpose:

Part 1 – Scope, Object, and Fundamental Principles

  • Scope: Outlines the extent of installations to which BS 7671 applies, such as domestic, commercial, and industrial premises. It also defines installations it doesn’t cover (e.g., railway or aircraft systems).
  • Object: States the overall purpose, which is to ensure safety from electric shock, fire, and explosion.
  • Fundamental Principles: Provides the basic safety principles, including protection against electric shock, fire, thermal effects, voltage drops, and interference.

Part 2 – Definitions

  • Provides clear definitions of terms used throughout the standard. This section is critical as it ensures uniform understanding and interpretation of terms such as “bonding,” “live part,” and “earthing.”

Part 3 – Assessment of General Characteristics

  • Discusses requirements for assessing the characteristics of an installation before the design phase. Topics include:
  • Purpose and intended use of the installation.
  • Supply characteristics such as voltage, frequency, and earthing arrangements.
  • External influences like environmental factors (e.g., temperature, moisture) and user capabilities.
  • Compatibility with other equipment.
  • Maintainability and ease of future modifications.

Part 4 – Protection for Safety

This part provides detailed guidance on protective measures against hazards, including:

Part 5 – Selection and Erection of Equipment

This part provides specific rules and recommendations for choosing and installing electrical equipment safely and effectively. It includes:

  • Chapter 51 – Common Rules: Covers general requirements for materials, markings, and installation practices.
  • Chapter 52 – Wiring Systems: Deals with the selection and installation of cables, conduits, and trunking, including installation methods to protect against damage.
  • Chapter 53 – Protection, Isolation, Switching, Control, and Monitoring: Discusses requirements for devices used to protect and control electrical installations, such as isolation switches, contactors, and relays.
  • Chapter 54 – Earthing Arrangements and Protective Conductors: Details earthing and bonding requirements to prevent electric shock and ensure fault current dissipation.
  • Chapter 55 – Other Equipment: Discusses requirements for specific equipment such as luminaires (lighting), socket-outlets, and transformers.
  • Chapter 56 – Safety Services: Focuses on emergency systems like fire alarms, emergency lighting, and essential power supplies for safety-critical applications.

Part 6 – Inspection and Testing

This part sets requirements for the inspection and testing of electrical installations, including:

  • Initial Verification: Defines the tests and checks to verify that a new installation complies with BS 7671 before it’s put into use.
  • Periodic Inspection and Testing: Details the requirements for regularly inspecting and testing existing installations to ensure continued safety and compliance.
  • Documentation: Specifies the need for clear records, such as certificates and reports, which confirm testing and compliance.

Part 7 – Special Installations or Locations

This part provides specific requirements for areas that have unique hazards or requirements due to environmental factors, usage, or special equipment. Each type of location has a dedicated section within Part 7, such as:

Each section in Part 7 addresses unique safety considerations, installation methods, and equipment requirements relevant to that location.

Part 8 – Energy Efficiency (newer addition)

Introduced in the 18th Edition, Part 8 focuses on the principles of designing energy-efficient electrical installations. Topics include:

  • Chapter 82 – Prosumer’s Low-Voltage Electrical Installations: Covers installations where users can both consume and generate energy (like solar-powered systems), integrating self-generated energy and energy storage systems.
  • Chapter 83 – Energy Efficiency Measures: Covers methods to reduce energy usage, like load management, automatic disconnection of non-essential loads, and high-efficiency lighting.

Appendices

The appendices provide additional guidance, charts, and tables to help implement the regulations effectively. Some important ones include:

  • Appendix 1 – British Standards and other technical references.
  • Appendix 3 – Maximum Earth Fault Loop Impedance values.
  • Appendix 4 – Current-carrying capacities and voltage drop.
  • Appendix 6 – Model forms for certification and reporting.
  • Appendix 14 – Determination of prospective fault current.
  • Appendix 15 – Ring and radial final circuit arrangements.

Each appendix offers practical resources for designers, installers, and inspectors, ensuring consistent application of the standards across different installation contexts.

BS 7671 is a comprehensive document, and each part serves to uphold high safety, efficiency, and reliability standards in electrical installations.
